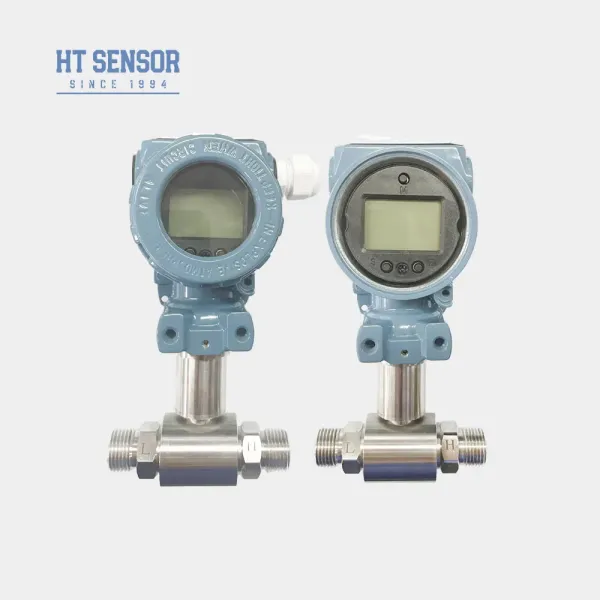

304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor

Certification : ISO9001

MOQ : 1

Price : 60

Brand Name : HT SENSOR

Model Number : BP93420D-II

Place of Origin : Baoji, China

Model NO. : BP93420D-II

Measuring Medium : gas or liquid

Accuracy Grade : 0.25%, 0.5%

Pressure range : 0-10kpa...~2MPa

IP Rating : IP65

Pressure Type : Differential Pressure

Min range : 10kpa

Max range : 2mpa

Output signal : 4-20mA

Static pressure : 5 times of rated pressure or 7MPa

Operating Temperature : -30ºC~80ºC

Storage Temperature : -40ºC~100ºC

Housing Material : 304,316L

Diaphragm Material : 316L

Weight : ~0.55kg

Contact Now

304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor

Professional differential pressure transmitter designed for water and oil applications in industrial environments.
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
Product Overview
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure acts on the corrugated diaphragms, the Wheatstone bridge output provides accurate linear measurement. Ideal for gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries.
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
Key Features
  • Stainless steel construction for compact design and easy installation
  • Rigorous temperature compensation and aging screening for stable performance
  • Flexible electrical interface options: plug-in or direct wiring
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pipeline and furnace chamber pressure measurement systems
Performance Parameters
Measurement Range0-10KPa...~2MPa
Pressure TypeDifferential Pressure
Single-side Overload≤3 times of the rated range
Static pressureThe minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature-30ºC~80ºC
Storage Temperature-40ºC~100ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingIntrinsically safe and explosion-proof
Protection RatingIP65
Weight~0.55kg
Output Signal Configuration
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		5VDC
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
Ordering Information
Selection Guidelines
  • Ensure measured medium compatibility with product contacting parts
  • Install three-valve manifold for reliable operation and uniform pressure application
  • Position pressure interfaces horizontally to minimize installation impact
  • Specify special requirements for vibration, impact, or electromagnetic interference
Order Guide
BP93420XXPressure Transmitter
DIIDifferential Pressure Transmitter
Measurement Range0-10KPa...~2MPa
CodePower Supply
D124VDC
D25VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
CodePressure Connection
J1M20×1.5 Male
J2G1/2 Male
J3G1/4 Male
J41/2 NPT Male
J5Other
CodeElectrical Connection
B1Hirschmann
B2PG7 Plug
B3Sealed Cable Output
B4Other
CodePressure Type
DDifferential Pressure
Frequently Asked Questions
  • What are the features of your pressure sensor transmitters?
  • High precision, durability, and excellent performance. Customization available.
  • Can I customize special specifications?
  • Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
  • What is your production capacity?
  • Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team for production scheduling.
  • What's the typical delivery period?
  • 5-8 working days for standard models. Customized products may vary.
  • How are the products priced? Any discounts?
  • Competitive pricing with discounts for bulk orders or long-term partners.
  • What is the warranty of your products? And after-sales service?
  • 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
