Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor

Certification : ,ISO9001

MOQ : 1

Price : 38

Brand Name : HT SENSOR

Model Number : BP93420-IC

Place of Origin : Baoji,China

Model NO. : BP93420-IC

Measuring Medium : Liquid

Accuracy Grade : 0.5%

Pressure Range : -100kpa...0kpa ~10kpa...100MPa

IP Rating : IP65

Pressure Type : Gauge Pressure, Absolute Pressure, Sealed Pressure

Long-Term Stability : +-0.1%F.S/Year(Typ.)

Diaphragm Material : 316L

Operating Temperature : -20ºC~150ºC

Storage Temperature : -40ºC~120ºC

Output Signal : 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485

Supply Voltage : 12~30VDC, 5VDC, 3.6~30V / Battery

Weight : ~0.3kg

Contact Now

BP93420IC High-Temperature Pressure Transmitter
Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
Key Features
  • Wide measuring range with stainless steel construction
  • Multiple pressure interface configurations available
  • IP65 protection rating with stainless steel housing
  • Zero and full-scale adjustable calibration
  • High precision measurement with all stainless steel structure
Applications
  • Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
  • Marine and aviation industry applications
  • Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa…0kPa ~ 10kPa…100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~150ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire 0/1~5V, 0/1~10V, 0.5~4.5V
RS485 Communication Protocol 5VDC, 3.6~30V / Battery 4 wire

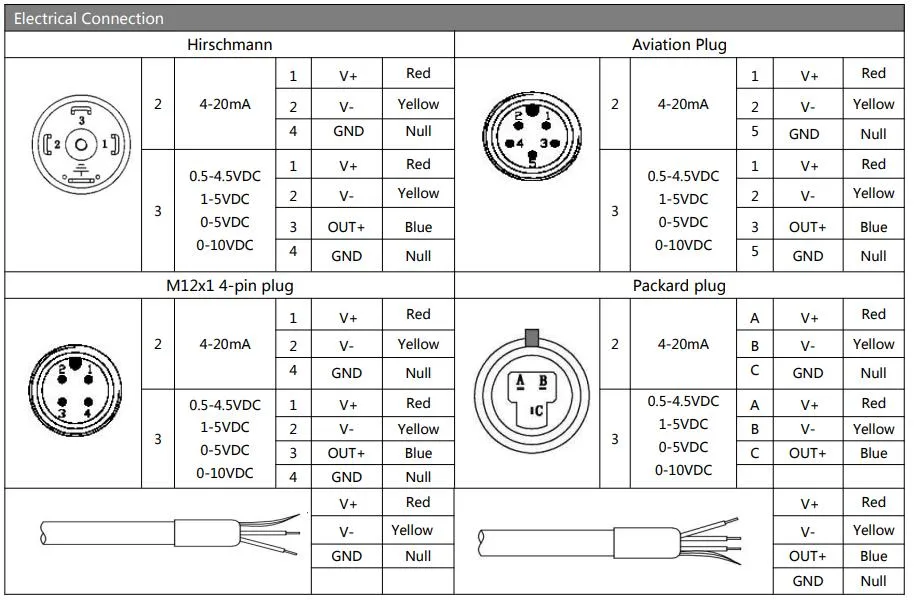

Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor
Ordering Information
Important Ordering Considerations
  • Ensure medium compatibility with product contact parts
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD/LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding
  • Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
  • Default cable length: 1.5m (polyethylene material)
  • Specify special requirements for vibration, impact, or electromagnetic interference
Hengtong 0-10V 4-20mA High-Temperature Resistance Diaphragm Pressure Transmitter Sensor For Process Control Pressure Sensor
Ordering Guide
BP93420XX | Pressure Transmitter

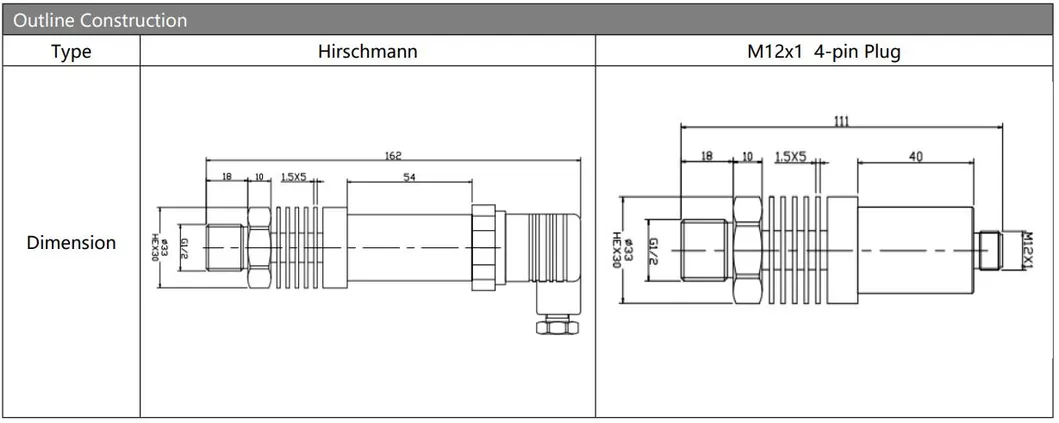

Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
Configuration Options
Code Power Supply Code Output Signal
D1 24VDC S1 4~20mADC
D2 5VDC S2 1~5VDC
D3 Other S3 0~5VDC
S4 0~10mADC
S5 0~20mADC
S6 0~10VDC
S7 0.5~4.5VDC
Code Pressure Connection Code Electrical Connection Code Pressure Type
J1 M20×1.5 B1 Hirschmann G Gauge Pressure
J2 G1/2 B2 PG7 Plug A Absolute Pressure
J3 G1/4 B3 Sealed Cable Output S Sealed Reference Pressure
J4 7/16-20UNF B4 2088 Industrial Casing
J5 Other B5 2088 Industrial Casing with Display
B6 Other
Frequently Asked Questions
  • What are the features of your pressure sensor transmitters?
  • High precision, durability, and excellent performance. Customization available.
  • Can I customize special specifications?
  • Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
  • What is your production capacity?
  • Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
  • What's the typical delivery period?
  • 5~8 working days for standard models. Customized products may vary.
  • How are the products priced? Any discounts?
  • Competitive pricing with discounts for bulk orders or long-term partners.
  • What is the warranty of your products? And after-sales service?
  • Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
