4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer

Product Categories
Baoji Hengtong Electronics Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer

Certification : ISO9001

MOQ : 1

Price : 40

Brand Name : HT SENSOR

Model Number : BH93420-I

Place of Origin : Baoji, China

Model NO. : BH93420-I

Output Signal : Analog Type

Production Process : Diffused Silicon

Material : Stainless Steel

IP Rating : IP68

Net Weight : 0.3kg

Diaphragm Material : 316L Stainless Steel

Long-Term Stability : +-0.2%F.S/Year

Operating Temp. : -20~80ºC

Measurement Range : 0~10m…400m

Accuracy : ±0.25% (Typ.) ±0.5% (Max.)

Repeatability : ±0.03% (Typ.) ±0.05%FS (Max.)

Hysteresis : ±0.03% (Typ.) ±0.05%FS (Max.)

Zero Point Drift : ±1.5%F.S(Typ.) ±2%F.S (Max.)

Full Scale Drift : ±1.5%F.Sr(Typ.) ±2%F.S (Max.)

Contact Now

4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer

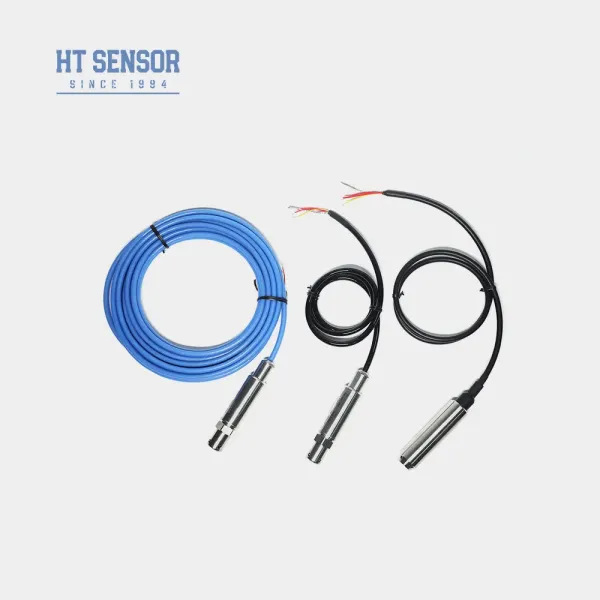

BH93420-I Water Level Transmitter
The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this immersion-type transmitter offers exceptional waterproof performance with its completely sealed stainless steel sensing element. Rigorous high and low-temperature compensation and aging tests ensure high reliability and excellent stability.
Key Features
  • Full stainless steel housing for diverse testing environments
  • Immersion-type probe measurement for easy installation
  • Multiple output signal options available
  • Explosion-proof certification: ExiaIICT6
  • High protection rating: IP68
  • PE or PU cable options
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Water level monitoring for sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Fuel level measurement in diesel and fuel tanks
Performance Parameters
Measurement Range 0~10m…400m
Overload ≤ 2 X of rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero Point Temperature Drift ±1.5%F.S(Typ.) ±2%F.S (Max.)
Full Scale Temperature Drift ±1.5%F.Sr(Typ.) ±2%F.S (Max.)
Compensation Temperature 0-50ºC (0-1m. 0-2m); 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer 4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer 4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer 4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer 4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer
Ordering Information
Selection Tips
  • Ensure measured medium compatibility with product components
  • Specify the density of the measured medium
  • Provide details of strong electromagnetic or radio frequency interference environments
  • Install lightning protection devices and ensure reliable grounding for optimal performance
Order Guide
BH93420 Code Outline Construction
I Pressure Transmitter
Measurement Range 0~10m…400m
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC S8 RS485
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Code Material
01 304 Stainless Steel
02 316L Stainless Steel
Code Cable Material
C1 PE
C2 PU
4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer 4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer
Frequently Asked Questions
  • What are the features of your pressure sensor transmitters?
  • High precision, durability, and excellent performance. Customization available.
  • Can I customize special specifications?
  • Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
  • What is your production capacity?
  • Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
  • What's the typical delivery period?
  • 5~8 working day for standard models. Customized products may vary.
  • How are the products priced? Any discounts?
  • Competitive pricing with discounts for bulk orders or long-term partners.
  • What is the warranty of your products? And after-sales service?
  • Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
